MLR

Resolution options with 2,5 / 5 / 10 / 12,5 / 20 / 25 μm (4x mode)
150 - 720 mm measuring distance
Non-contact magnetic scaling
Selective reference position settings (1Z, 2Z, 3Z, 5Z)
Push-Pull, HLD, Linedriver signal output options

MLI

2,5 / 5 / 10 / 12,5 / 20 / 25 µm resolution as standard
Other options on request
Magnetic contactless measurement
Push-Pull, TTL Linedriver or HTL Linedriver output options
Single referance standard or continous reference optional
Weak magnetic field and power on LEDs
IP 66 protection

MLIP

2,5 / 5 / 10 / 12,5 / 20 / 25 µm resolution (4x mode)
Magnetic contactless measurement
Can be extended up to 50 meter with special fixing parts
Can be used with multiple reader heads
Excellent solution for outdoor applications and stone machinery
IP 66 protection
TTL Linedriver, HTL Linedriver or Push-Pull outputs

MLC

2,5 / 5 / 10 / 12,5 / 20 / 25 µm resolution (4x mode)
Measuring range 50 - 800 mm
Magnetic contactless measurement
TTL Linedriver, HTL Linedriver outputs optional
IP 65 protection

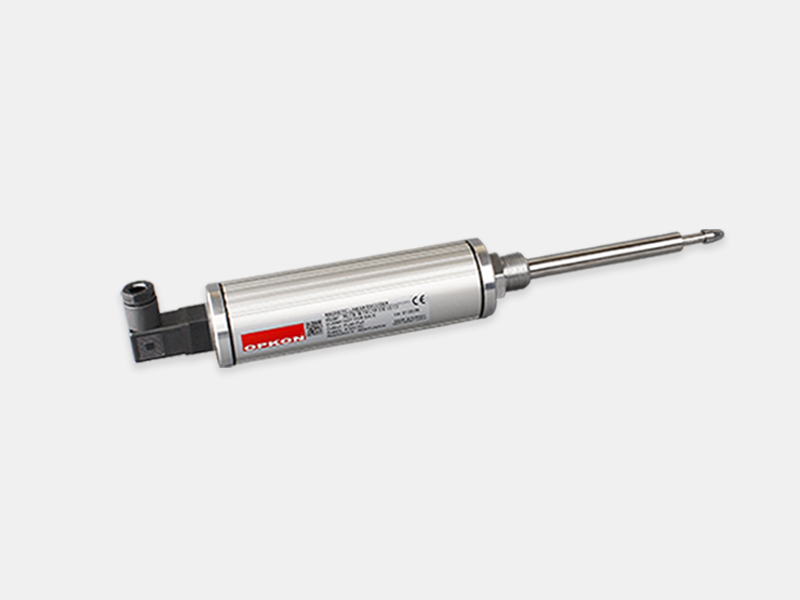

MLCS

10 µm accuracy
15 mm measurement stroke
1024 puls / mm resolution
Magnetic, incremental
Push-Pull and Linedriver output
IP 65 protection
Internal spring loaded
Quality Control and for Test Application
